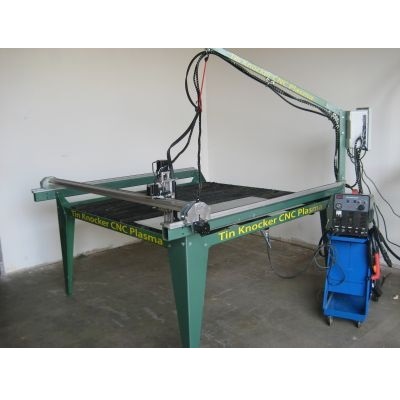

Tin Knocker 5 x 5 CNC Plasma Table
Cleat Benders / Cheek Benders / Bar Folders
Standard Features
- Bolt together 5’x5’ or 5’x10’ table. Set it up anywhere (garage, attic, shed, basement, shop).
- Dual purpose, 40 AMP power pack. Take it to the field as a hand held, or use it on the CNC plasma table. It is as easy to change as flipping a switch. Cuts up to ¼” mild steel.
- Automatic torch height control.
- Full HVAC fittings library with nesting. Very user friendly and easy to use with 3-D graphics that change with your data input. You
- need not be a computer wiz to be effective with this software. Anyone who knows HVAC sheet metal will become effective in a snap.
- Full standard shapes library (squares, rectangles, rounds, ovals, triangles, etc).
- Other software features include, but are not limited to: *Cost Analysis *Material Usage *Scrap generated *Weights
- Label printing
- Aluminum extruded gantry with embedded hardened and ground “V” rail and rack. All motors direct drive, no belts or chains. A
- work of art!! Light and rigid.
- Slatted material support with removable slat holders and replaceable slats.
- Video manuals…take you step by step through set up and operation.
Benefits
- Full featured-it does everything those do that cost twice as much.
- Low cost—-The Tin Knocker is absolutely the BEST VALUE to be found in a plasma table.
- Highest quality components – Made in the USA .
- Very supportable. No patented “gotcha” parts. Get help from us or the manufacturers of the component parts.
- Simple-Designed for function, simplicity and cost effectiveness.
- Durable construction.
- Easy to move….you can even erect it in the shop or on the job site, and you don’t need machinery movers to move it.
- Bolt together, precision table allows you to get this machine into places where others cannot.
- Laptop allows you to programs anywhere……in Starbucks?
- Specifications
- Power required: 30 Amps of 220/1/60 AND 10 Amps of 115/1/60
- Shipping weight: 650 lbs. crated
- Dimensions of shipping crate: 28” H x 48”W x 84”L
- Cutting capacity: Cuts up to ¼” steel plate with our standard 40 amp power pack.
- Max. material weight on table: 2000 lbs.
- Max. cut size: 60”x 60” on the 5’x 5’ table, (60”x120” with optional table expansion). Larger shapes can be easily cut by repositioning material.
- Cutting speeds: X/Y-variable up to 0-350 IPM. Speeds automatically set with input of material being cut.
- Resolution X/Y-.0005”.
Options
- 60 AMP power pack to cut up to ¾” steel, in lieu of standard 40 AMP
