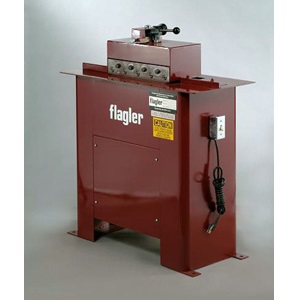

Flagler 20 Ga. Standard Pittsburgh

Flagler 20 Ga. Standard Pittsburgh

Roll Forming Machines

Specifications:

Capacity: 20 to 26 gauge.

Depth of Pocket: 5/16″. Built in Pittsburgh Lock Rolls. Uses approximately 1″ of material.

Extended Shafts: For 1 set of Aux Tooling.

Speed: Approximately 23 feet per minute.

Motor: 3/4 HP 115/1/60/1800 RPM .

Drive: Vee Belt.

Base: Arc Welded Steel. Heavy top plate.

Dimensions: 36″ long, 16″ 1/2″ wide, 37″ high Feed table height 32 5/8″

Shipping Weight: Approximately 320 pounds.

Auxiliary Tooling Available
3/8” Double Seam Rolls
1 1/8” Drive Cleat Rolls
3/8” Right Angle Flange

Ideal for small to medium sized sheet metal contractors or for fitting departments of large manufactures. This machine features hardened feed gauges and 3 piece shaft/roll/gear design.
